ZICHAI Z6180ZLD Series Generator Sets

The Zichai Z6180ZLD Series generator sets leverage the company’s decades of experience in marine power R&D and manufacturing. With diverse product types and fuel adaptability, these generator sets find extensive applications across industrial, energy, environmental, and infrastructure sectors. Featuring robust construction and reliable operation, the series covers a power range of 350 kW to 540 kW at speeds of 1000 to 1500 rpm, ensuring stable and efficient performance under continuous load conditions. Compliant with international and domestic emission standards, this series achieves exceptional fuel efficiency under full load conditions, significantly reducing operational costs. Through optimized maintainability and durability design, these generator sets demonstrate exceptional availability and adaptability in real-world applications.

coming soon...

General Specifications of Z6180ZLD Series

Rated Power : 350 – 540 kW
Maximum Power of Diesel Engine : 440 – 660 kW
Rated Speed : 1000 - 1500 rpm
Rated Current : 631 - 974 A
Stationary Voltage Regulation Ratio : ±1% (single-player);±2.5% (parallel)
Fuel Consumption : 195 g/kW·h
Lube Oil Consumption : 1.0 g/kW·h
Weight of Set : 6800 - 7300 kg
Rated Frequency : 50/60 Hz
ZDMO350PNOA 350 kW ZDMO350PNOA

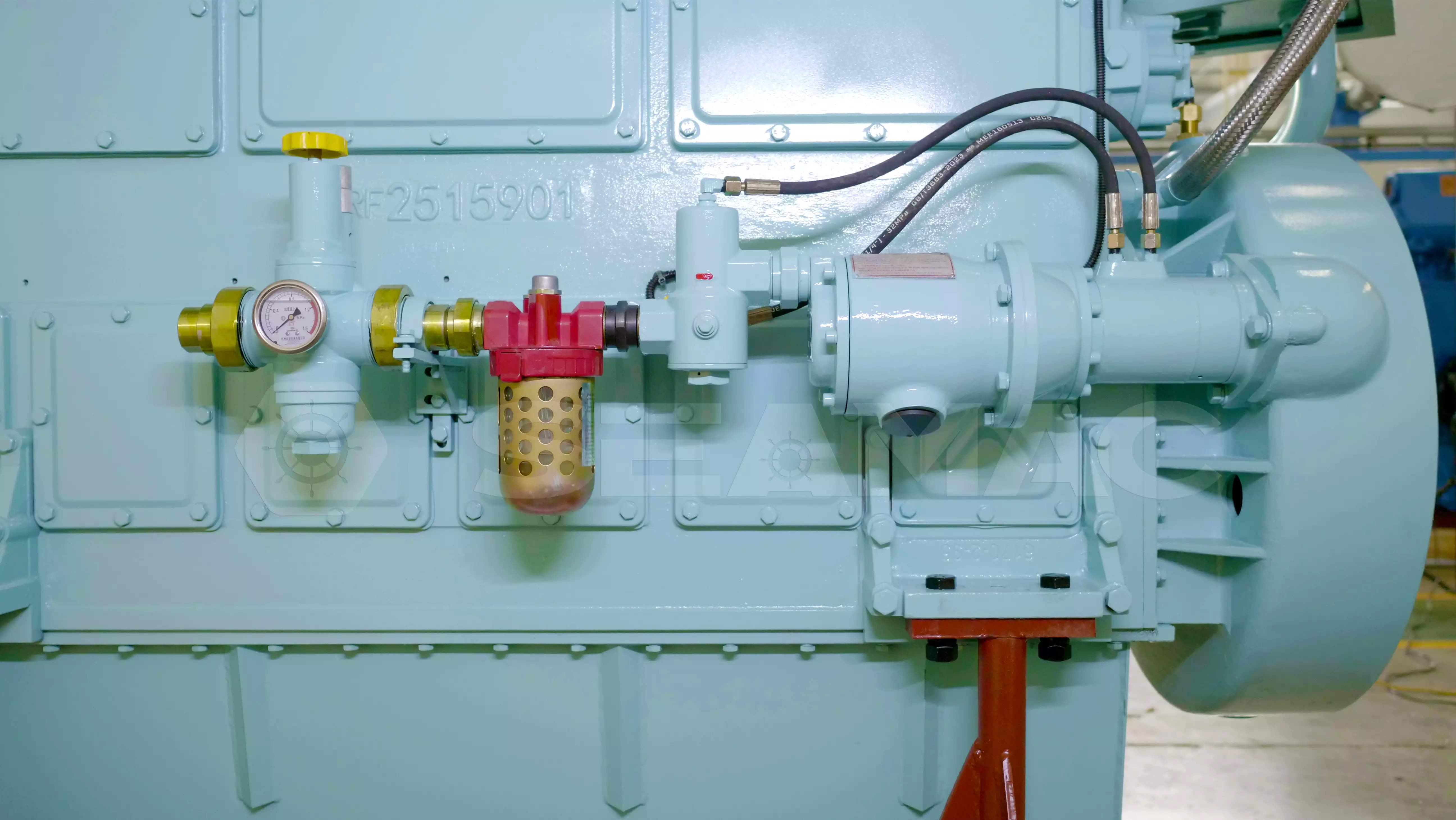

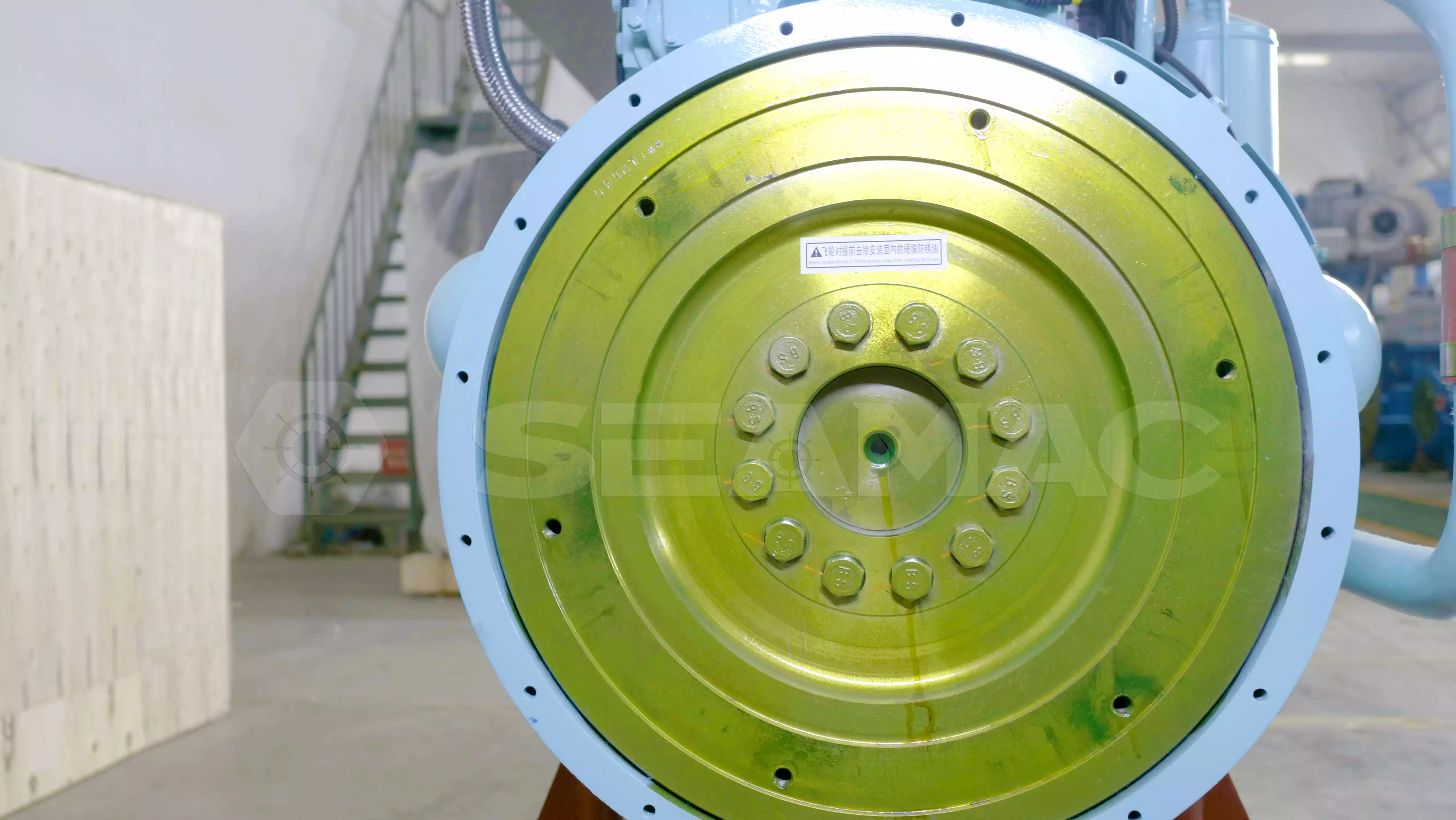

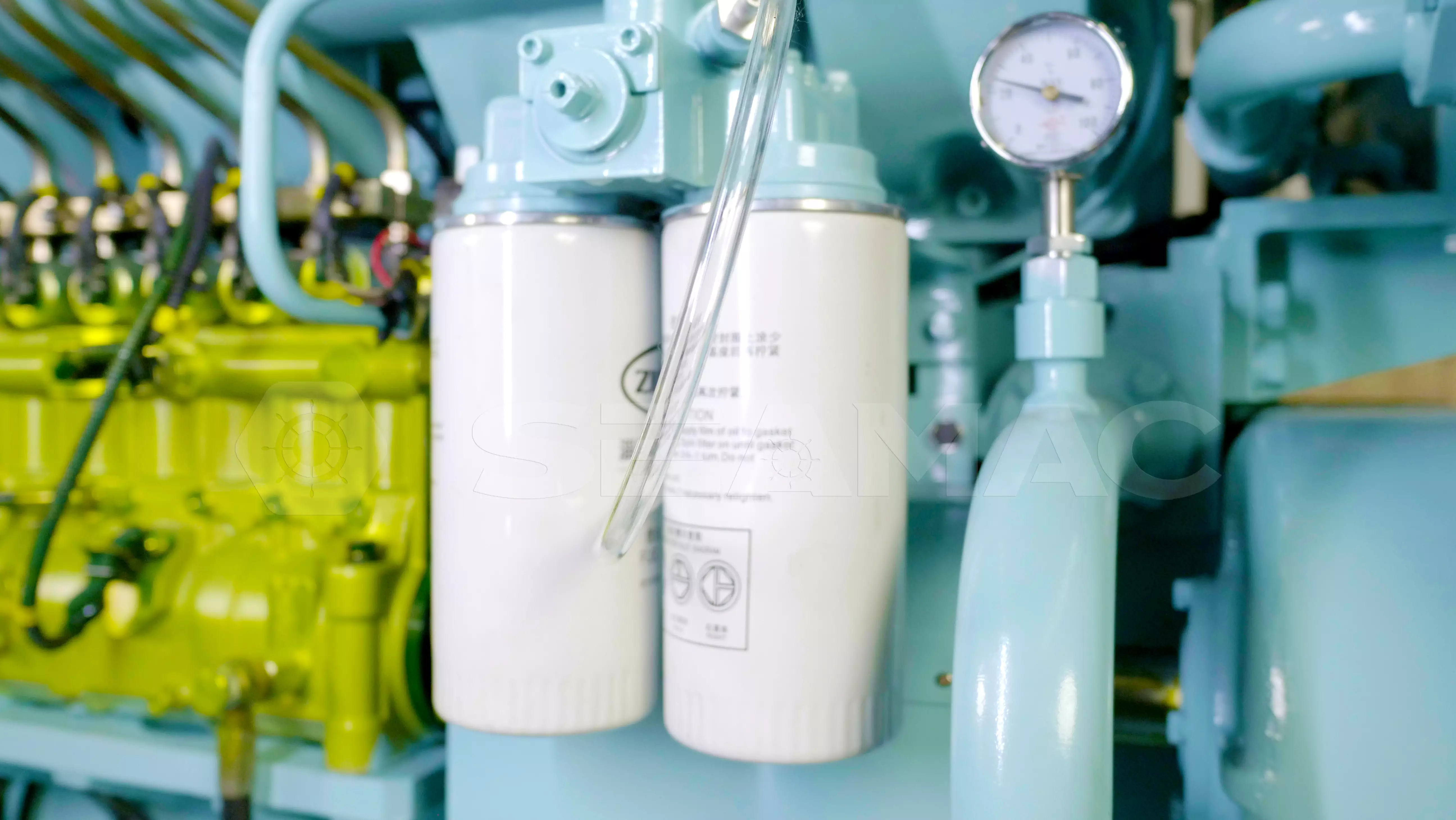

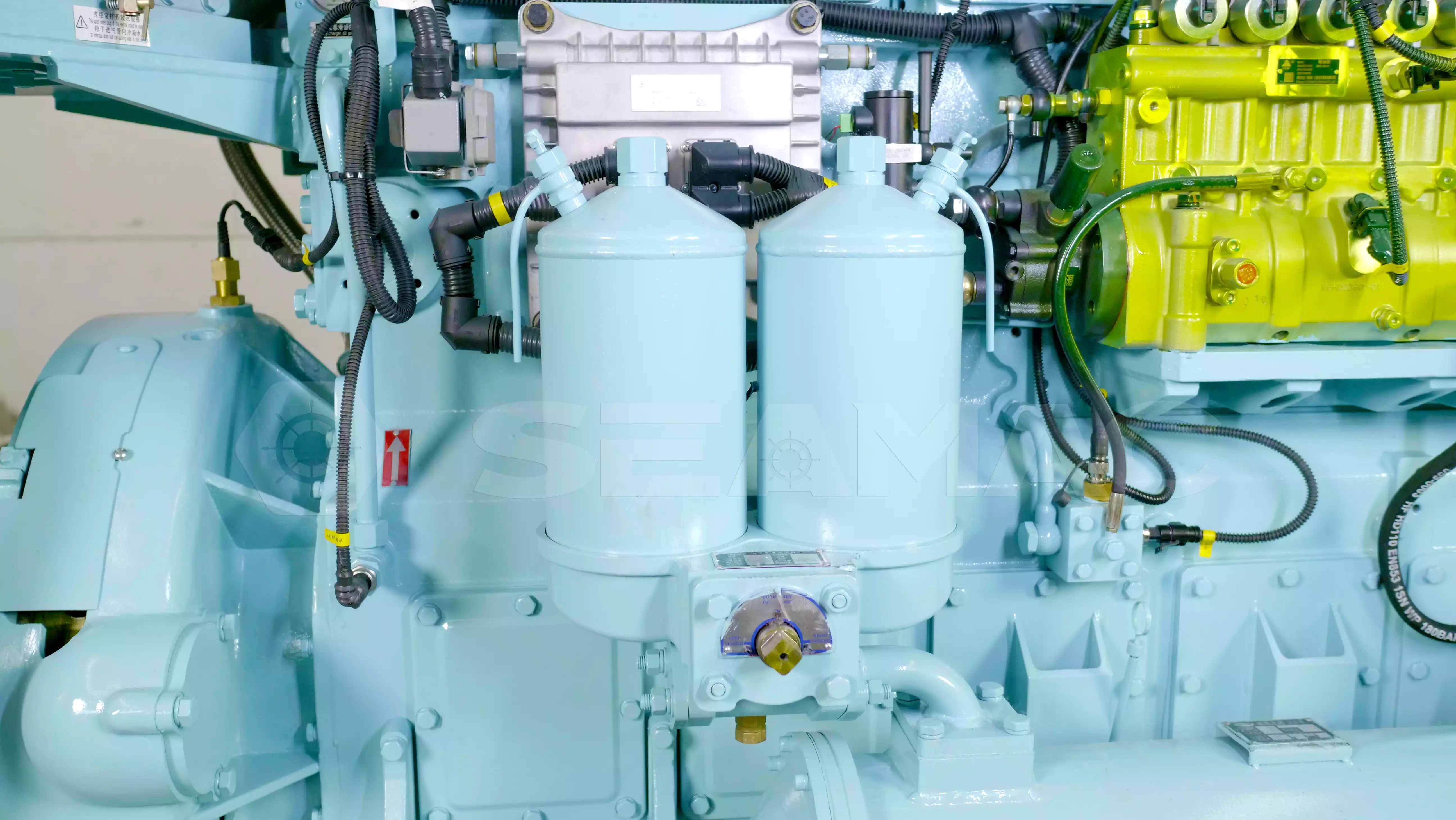

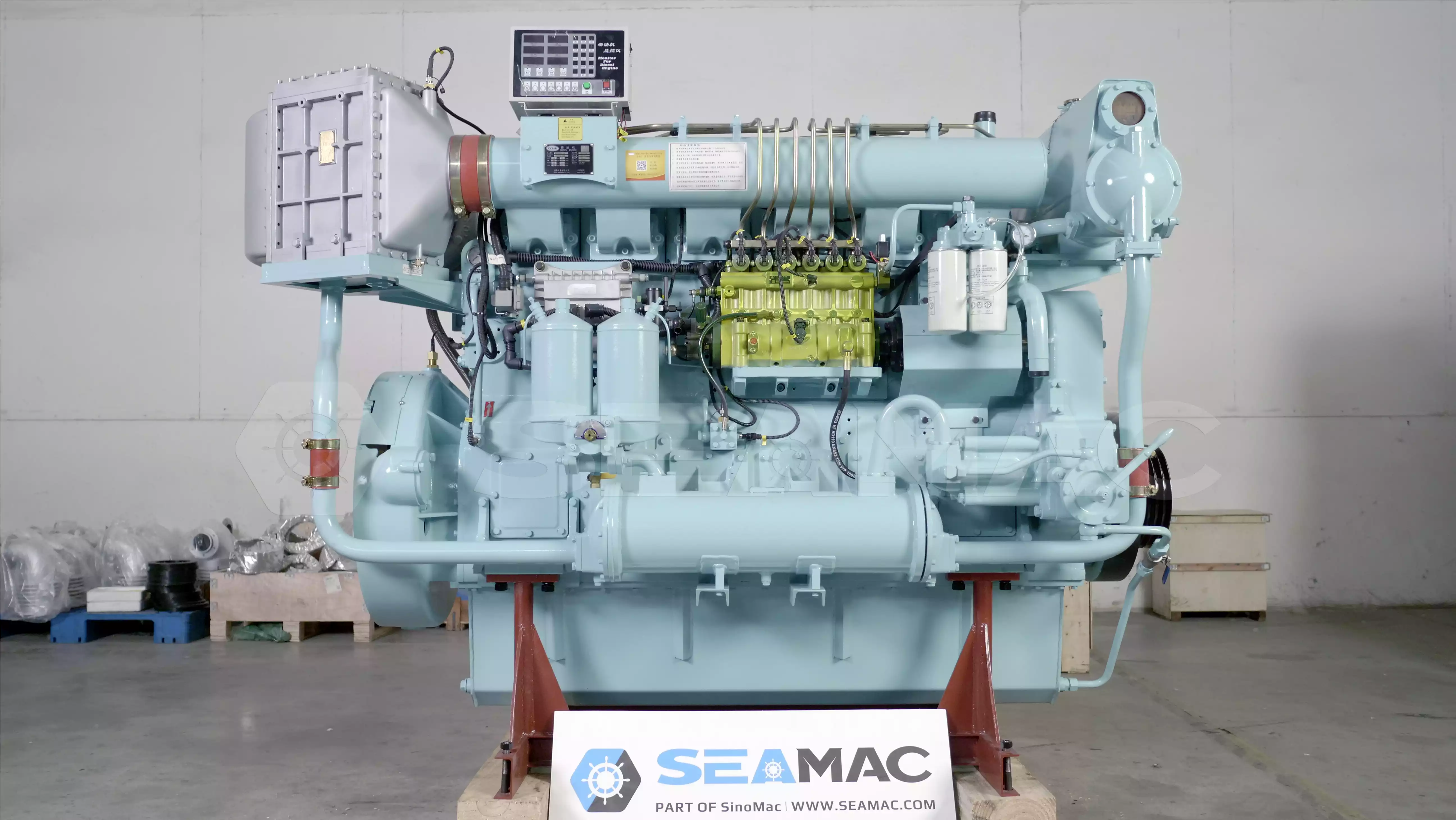

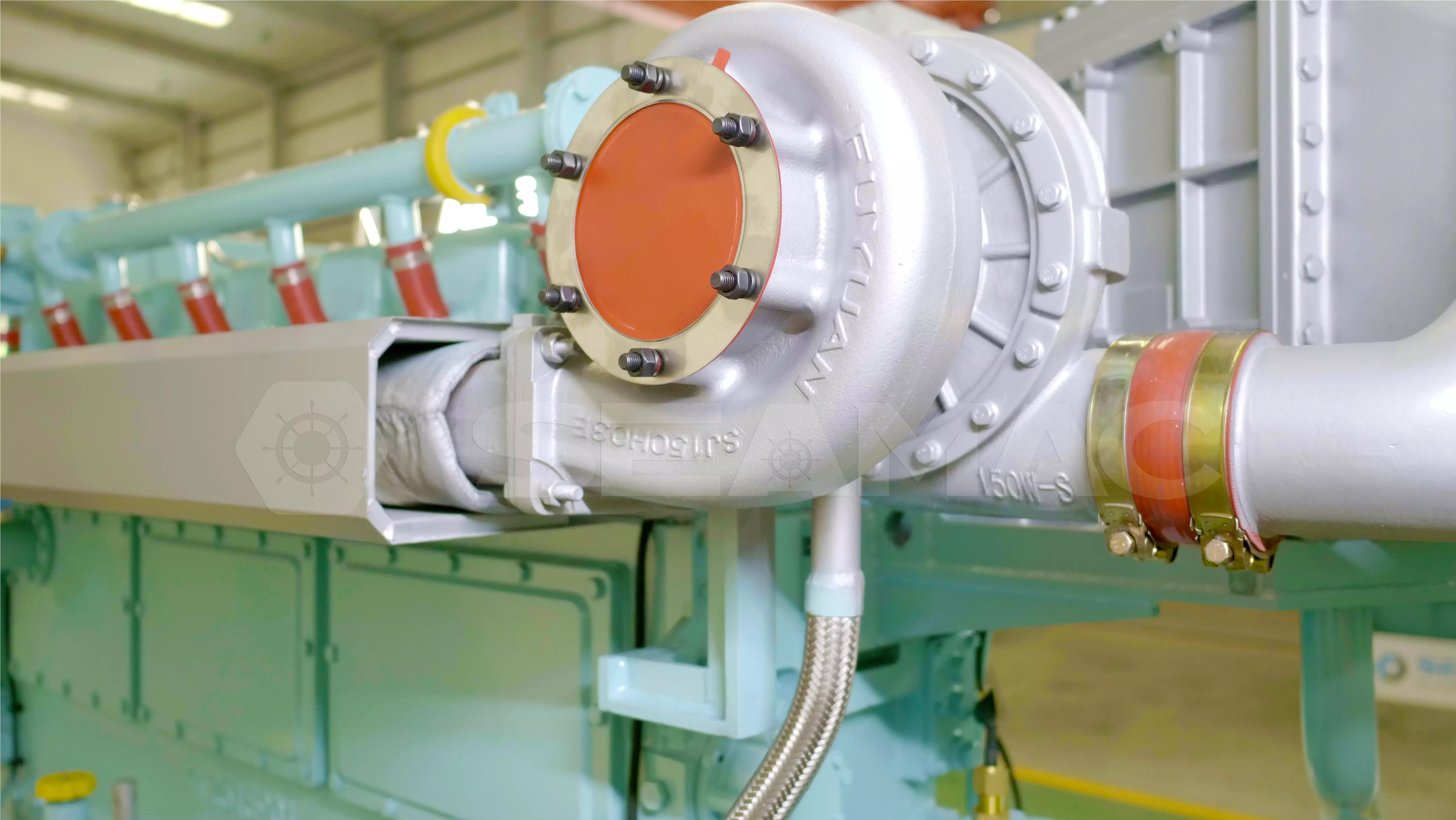

ZDMO400PNOA 400 kW ZDMO400PNOA
ZDMO400PNOB 400 kW ZDMO400PNOB
ZDMO450PNOA 450 kW ZDMO450PNOA
ZDMO500PNOA 500 kW ZDMO500PNOA

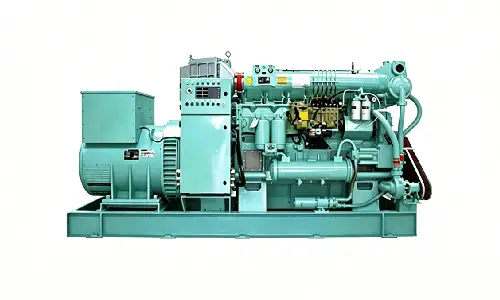

ZDMO540PNOA 540 kW ZDMO540PNOA
Engine Model
Rated Power/kW
300 350 400 450 500 550 600 650
Zichai Z6180ZLD Series Catalogue

Engine Model

Rated Power

Rated Speed

Engine Model

Rated Power

Rated Speed

ZDMO350PNOA 350 kw 1000 rpm ZDMO400PNOA 400 kw 1000 rpm
ZDMO400PNOB 400 kw 1200 rpm ZDMO450PNOA 450 kw 1500 rpm
ZDMO500PNOA 500 kw 1500 rpm ZDMO540PNOA 540 kw 1500 rpm
——END——

Zichai Z6180ZLD Series Generator Set

This is the list of all series of Zichai Z6180ZLD Series Generator Set.
