ZICHAI Marine Z6180ZLCZ-1 Engine
The Z6180ZLCZ-1 is an 6-cylinder marine engine featuring an in-line, four-stroke, direct-injection, turbocharged and intercooled non-reversible design. With a cylinder bore of 180 mm, piston stroke of 210 mm, compression ratio of 14.5, and rated speed of 1500 rpm, it delivers a rated power of 600 kW, with an optimized fuel consumption rate of 185 g/kW·h. Built with robust construction and sophisticated engineering, it has been rigorously tested under harsh operating conditions to guarantee stable power output and greatly improve equipment uptime.
Supported by advanced combustion and electronic control systems, the engine achieves outstanding efficiency and energy conservation, effectively lowering fuel consumption and operating costs to enhance customer profitability. Furthermore, it fully meets the latest domestic and international emission requirements, embodying eco-friendly performance and supporting sustainable development in the shipping industry. With superior power, reliability and economy, it serves as an ideal power solution for various marine applications.
Advantages of Marine Engine Z6180ZLCZ-1
Reliable & Durable: Sturdy structure and reliable operation ensure stable performance and long service life.
Highly Efficient: Advanced technology optimizes energy efficiency and lowers operating costs effectively.
Eco-friendly: Fully compliant with international emission regulations for green and sustainable operation.
Stable Output: Professional design guarantees consistent power performance and high uptime.
Technical Specifications
| Engine Model : | Z6180ZLCZ-1 |
| Rated Power : | 600 kW |
| Rated Speed : | 1500 rpm |
| Cylinder Bore : | 180 mm |
| Piston Stroke : | 210 mm |
| Cylinder No. : | 6 |
| Compression Ratio : | 14.5 |
| Mean Effective Pressure : | 1.497 MPa |
| Mean Piston Speed : | 10.50 m/s |
| Minimum Stable Speed : | 675 rpm |
Engine Model | Rated Power | Rated Speed | Mean Effective Pressure | ||
| Z6180ZLCZ-1 | 600 kW | 1500 rpm | 1.497 MPa | ||
| Z6180ZLCZ-4 | 478 kW | 1500 rpm | 1.139 MPa | ||
| Z6180ZLCZ-5B | 560 kW | 1350 rpm | 1.552 MPa | ||
| Z6180ZLCZ-8 | 400 kW | 1350 rpm | 1.109 MPa | ||
| Z6180ZLCZ-9B | 500 kW | 1200 rpm | 1.559 MPa | ||
| Z6180ZLCZ-12 | 367 kW | 1200 rpm | 1.145 MPa | ||
| Z6180ZLCZ-13A | 440 kW | 1000 rpm | 1.647 MPa | ||
| Z6180ZLCZ-16 | 294 kW | 1000 rpm | 1.100 MPa | ||
| ——END—— | |||||
| General Information of ZICHAI Z6180ZLCZ-1 Marine Engine | |||||
|---|---|---|---|---|---|
| Model | Z6180ZLCZ-1 | Type | In-line, four strokes, direct injection, turbocharged, intercooled, irreversible | ||
| Cylinder No. | 6 | Cylinder Bore / Piston Stroke | 180 mm/ 210 mm | ||
| Total Displacement | 32.06 L | Rated Power / Speed | 600 kW / 1500 rpm | ||
| Overload Power / Speed | 660 kW / 1548 rpm | Minimum Stable Speed | 675 rpm | ||
| Mean Piston Speed | 10.50 m/s | Compression Ratio | 14.5 | ||
| Mean Effective Pressure | 1.497 MPa | Absolute Boosted Pressure | 0.29±0.01 MPa | ||
| Maximum Combustion Pressure | ≤14.0 MPa | Each Cylinder Exhaust Temperature | ≤550 °C | ||
| Exhaust Temperature Before Turbocharger | ≤600 °C | Fuel Oil Consumption | 185 g/kW·h | ||
| Lubrication Oil Consumption | 0.8 g/kW·h | Rotation / Firing Order | Viewed from flywheel side Counterclockwise: 1-5-3-6-2-4 | ||
| Starting Method | Air、Electrical、air & Electrical motor starting | Lubricating Method | Pressure lubrication | ||
| Height Of Lifting Piston | 1260 mm | Weight | 3400 kg | ||
| Dimensions ( L × W × H ) | 2612×1390×1735 mm (Only reference, please refer to the drawing) | ||||
| ——END—— | |||||

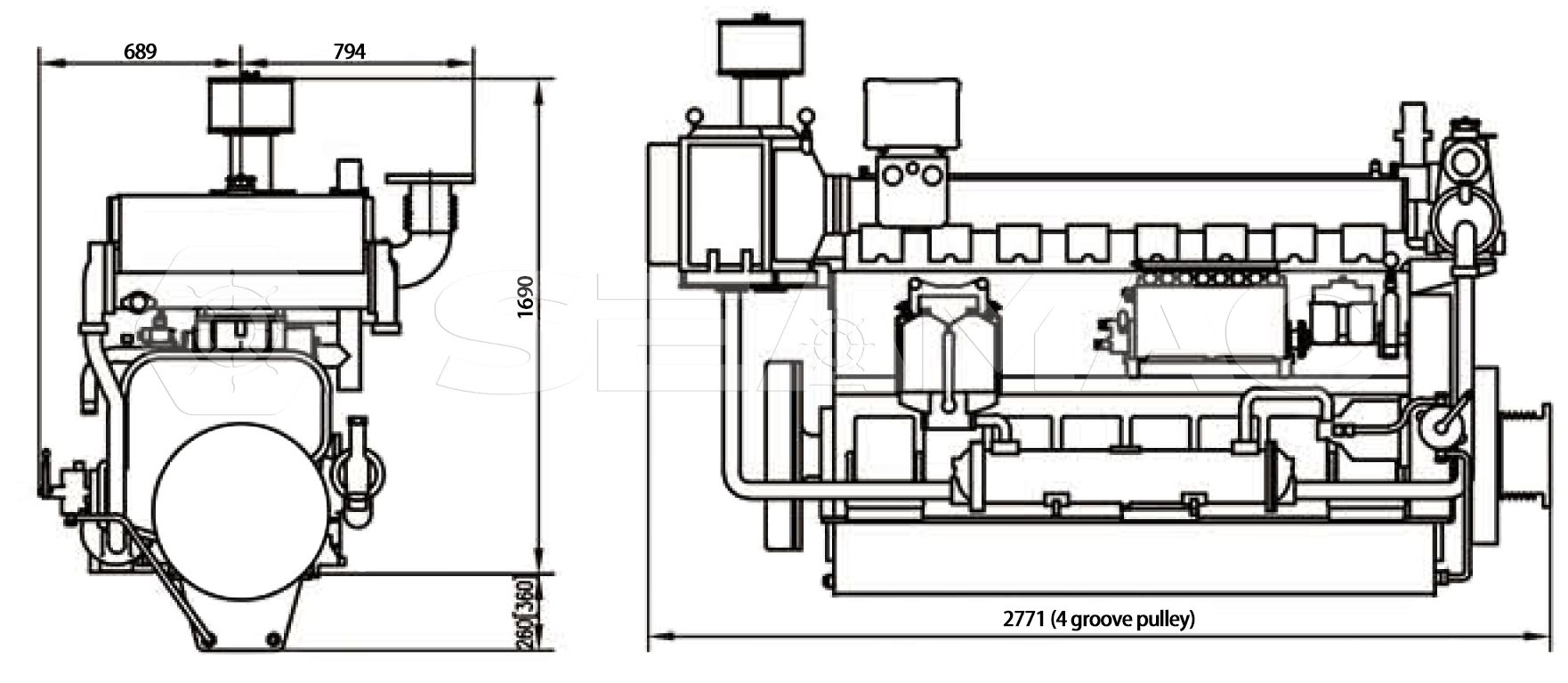

Z6180ZLCZ Series Marine Engine Dimensions
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
