ZICHAI Marine ZC6200ZLC-2 Engine
The ZC6200ZLC-2 is an 6-cylinder marine engine featuring an in-line, four-stroke, direct-injection, turbocharged and intercooled non-reversible design. With a cylinder bore of 200 mm, piston stroke of 285 mm, and rated speed of 1000 rpm, it delivers a rated power of 882 kW, with an optimized fuel consumption rate of 185 g/kW·h. Built with robust construction and sophisticated engineering, it has been rigorously tested under harsh operating conditions to guarantee stable power output and greatly improve equipment uptime.
Supported by advanced combustion and electronic control systems, the engine achieves outstanding efficiency and energy conservation, effectively lowering fuel consumption and operating costs to enhance customer profitability. Furthermore, it fully meets the latest domestic and international emission requirements, embodying eco-friendly performance and supporting sustainable development in the shipping industry. With superior power, reliability and economy, it serves as an ideal power solution for various marine applications.
Advantages of Marine Engine ZC6200ZLC-2
Reliable & Durable: Sturdy structure and reliable operation ensure stable performance and long service life.
Highly Efficient: Advanced technology optimizes energy efficiency and lowers operating costs effectively.
Eco-friendly: Fully compliant with international emission regulations for green and sustainable operation.
Stable Output: Professional design guarantees consistent power performance and high uptime.
Technical Specifications
| Engine Model : | ZC6200ZLC-2 |
| Rated Power : | 882 kW |
| Rated Speed : | 1000 rpm |
| Cylinder Bore : | 200 mm |
| Piston Stroke : | 285 mm |
| Total Displacement : | 53.72 L |
| Cylinder No. : | 6 |
| Mean Effective Pressure : | 1.97 MPa |
| Mean Piston Speed : | 9.5 m/s |
| Maximum Combustion Pressure : | 16 MPa |
Engine Model | Rated Power | Rated Speed | Mean Effective Pressure | ||
| ZC6200ZLC | 1103 kW | 1000 rpm | 2.46 MPa | ||
| ZC6200ZLC-1 | 992 kW | 1000 rpm | 2.22 MPa | ||
| ZC6200ZLC-2 | 882 kW | 1000 rpm | 1.97 MPa | ||
| ZC6200ZLC-3 | 992 kW | 900 rpm | 2.46 MPa | ||
| ZC6200ZLC-4 | 893 kW | 900 rpm | 2.22 MPa | ||
| ZC6200ZLC-5 | 794 kW | 900 rpm | 1.97 MPa | ||
| ZC6200ZLC-6 | 735 kW | 1000 rpm | 1.64 MPa | ||
| ZC6200ZLC-7 | 662 kW | 900 rpm | 1.64 MPa | ||
| ZC6200ZLC-59 | 1213 kW | 1000 rpm | 2.71 MPa | ||
| ——END—— | |||||
| General Information of ZICHAI ZC6200ZLC-2 Marine Engine | |||||
|---|---|---|---|---|---|
| Model | ZC6200ZLC-2 | Type | In-line, four strokes, direct injection, turbocharged, intercooled, irreversible | ||
| Cylinder No. | 6 | Cylinder Bore / Piston Stroke | 200 mm/ 285 mm | ||
| Total Displacement | 53.72 L | Rated Power / Speed | 882 kW / 1000 rpm | ||
| Overload Power / Speed | 970 kW / 1032 rpm | Mean Piston Speed | 9.5 m/s | ||
| Mean Effective Pressure | 1.97 MPa | Absolute Boosted Pressure | 0.30±0.01 MPa | ||
| Maximum Combustion Pressure | 16 MPa | Fuel Oil Consumption | 185 g/kW·h | ||
| Lubrication Oil Consumption | 0.8 g/kW·h | Rotation / Firing Order | Viewed from flywheel side Clockwise: 1-5-3-6-2-4 | ||
| Starting Method | Compressed air motor starting or electrical motor starting | Lubricating Method | Pressure lubrication | ||
| Height Of Lifting Piston | 1655 mm | Weight | 9300 kg | ||
| Dimensions ( L × W × H ) | 3107×1453×2035 mm (Only reference, please refer to the drawing) | ||||
| ——END—— | |||||

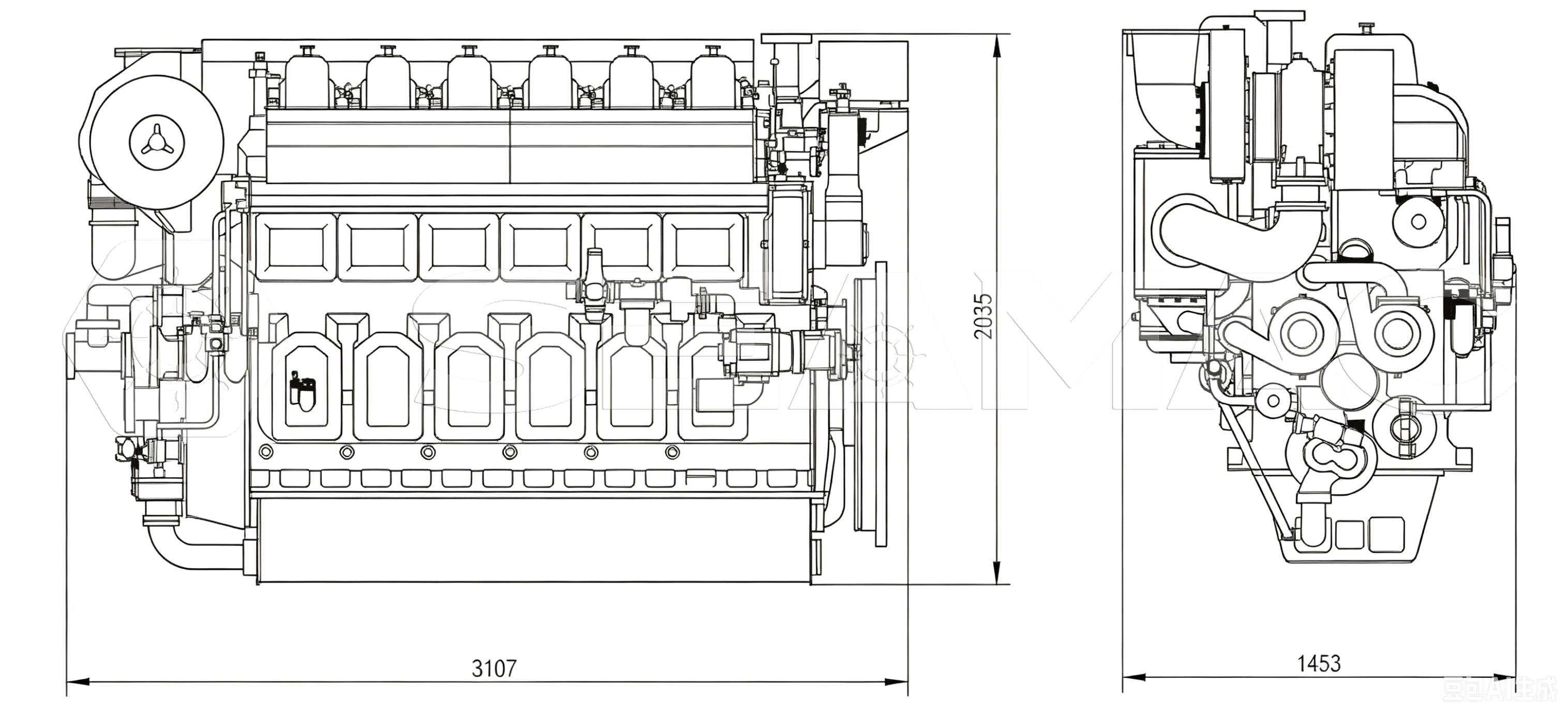

ZC6200ZLC Series Marine Engine Dimensions
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
