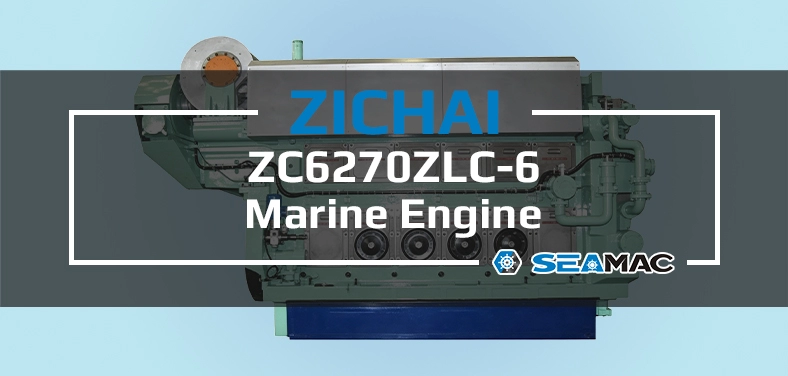

ZICHAI Marine ZC6270ZLC-6 Engine
The ZC6270ZLC is an 6-cylinder marine engine featuring an in-line, four-stroke, direct-injection, turbocharged and intercooled non-reversible design. With a cylinder bore of 270 mm, piston stroke of 385 mm, total displacement of 132.3 L, and rated speed of 800 rpm, it delivers a rated power of 1920 kW / 2610 PS, with an optimized fuel consumption rate of 185 g/kW·h. Built with robust construction and sophisticated engineering, it has been rigorously tested under harsh operating conditions to guarantee stable power output and greatly improve equipment uptime.
Supported by advanced combustion and electronic control systems, the engine achieves outstanding efficiency and energy conservation, effectively lowering fuel consumption and operating costs to enhance customer profitability. Furthermore, it fully meets the latest domestic and international emission requirements, embodying eco-friendly performance and supporting sustainable development in the shipping industry. With superior power, reliability and economy, it serves as an ideal power solution for various marine applications.
Advantages of Marine Engine ZC6270ZLC
Reliable & Durable: Sturdy structure and reliable operation ensure stable performance and long service life.
Highly Efficient: Advanced technology optimizes energy efficiency and lowers operating costs effectively.
Eco-friendly: Fully compliant with international emission regulations for green and sustainable operation.
Stable Output: Professional design guarantees consistent power performance and high uptime.
Technical Specifications
| Engine Model : | ZC6270ZLC |
| Rated Power : | 1920 kW / 2610 PS |
| Rated Speed : | 800 rpm |
| Cylinder Bore : | 270 mm |
| Piston Stroke : | 385 mm |
| Cylinder No. : | 6 |
| Total Displacement : | 132.3 L |
| Mean Effective Pressure : | 2.18 MPa |
| Supercharge Pressure (Absolute) : | 0.41 ± 0.01 MPa |
| Maximum Combustion Pressure : | ≤19.5 MPa |
Engine Model | Rated Power | Rated Speed | Mean Effective Pressure | ||
| ZC6270ZLC | 1920 kW / 2610 PS | 800 rpm | 2.18 MPa | ||
| ZC6270ZLC-1 | 1800 kW / 2450 PS | 750 rpm | 2.18 MPa | ||
| ZC6270ZLC-2 | 1620 kW / 2200 PS | 750 rpm | 1.96 MPa | ||
| ZC6270ZLC-3 | 2190 kW / 2978 PS | 800 rpm | 2.49 MPa | ||
| ZC6270ZLC-4 | 2100 kW / 2856 PS | 800 rpm | 2.39 MPa | ||
| ZC6270ZLC-5 | 1470 kW / 2000 PS | 750 rpm | 1.78 MPa | ||
| ZC6270ZLC-6 | 1324 kW / 1800 PS | 650 rpm | 1.85 MPa | ||
| ZC6270ZLC-7 | 1177 kW / 1600 PS | 650 rpm | 1.64 MPa | ||
| ZC6270ZLC-8 | 1103 kW / 1500 PS | 650 rpm | 1.54 MPa | ||
| ZC6270ZLC-9 | 1030 kW / 1400 PS | 600 rpm | 1.56 MPa | ||
| ZC6270ZLC-10 | 957 kW / 1300 PS | 600 rpm | 1.45 MPa | ||
| ZC6270ZLC-11 | 882 kW / 1200 PS | 600 rpm | 1.33 MPa | ||
| ZC6270ZLC-12 | 735 kW / 1000 PS | 600 rpm | 1.11 MPa | ||
| ZC6270ZLC-15 | 2000 kW / 2720 PS | 750 rpm | 2.42 MPa | ||
| ZC6270ZLC-16 | 1840 kW / 2200 PS | 700 rpm | 2.38 MPa | ||
| ——END—— | |||||
| General Information of ZICHAI ZC6270ZLC Marine Engine | |||||
|---|---|---|---|---|---|
| Model | ZC6270ZLC | Type | In-line, four strokes, direct injection, turbocharged, intercooled, irreversible | ||
| Rated Power | 1920 kW / 2610 PS | Rated Speed | 800 rpm | ||
| Cylinder Bore | 270 mm | Piston Stroke | 385 mm | ||
| Cylinder No. | 6 | Total Displacement | 132.3 L | ||
| Compression Ratio | 16.5 | Minimum Stable Speed | 320 rpm | ||
| Mean Piston Speed | 10.267 m/s | Mean Effective Pressure | 2.18 MPa | ||
| Supercharger Pressure (Absolute) | 0.41 ± 0.01 MPa | Maximum Combustion Pressure | ≤19.5 MPa | ||
| Each Cylinder Exhaust Temperature | 370~450 ℃ | Exhaust Temperature Before Turbocharger | 480~530 ℃ | ||
| Fuel Oil Consumption | 185 g/kW·h | Lubrication Oil Consumption | 0.8 g/kW·h | ||
| Fire Order | 1-2-4-6-5-3 (Clockwise) 1-3-5-6-4-2 (Counter-Clockwise) | Starting Method | Compressed air starting motor | ||
| Fuel Injection Timing | 10.5 °CA (The timing difference of oil supply in each cylinder is 1°CA) | Starting Air Pressure | Air bottle pressure: 3.0; After the relief valve pressure: 1.0 | ||
| Dimensions ( L × W × H ) | 5102×2317×3660 mm (Only reference, please refer to the drawing) | Lifting Height Of Cylinder | 3040 mm (Without cylinder head bolt) / 3482 mm (With cylinder head bolt) | ||
| Weight | (About) 30300 kg | Crank Arrangement | 1.6 2.5 3.4 | ||
| Noise Level (Sound Pressure Level) | < 100 dB(A) | ||||
| ——END—— | |||||
ZC6270ZLC Series Marine Engine Dimensions
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
